Warrior AI — QA Strategy
Test Strategy.
Sign-Off Ready.
Full QA coverage from unit tests through 10,000-user load simulation. Every item Anna needs to sign off — functional, load, security, and CI/CD gates — documented with pass criteria and current status.
✓ WARAI-71 CORS Fixed✓ WARAI-72 Rate Limiting Live42 Security Checklist Items22 Anna's Gate Items
3Test Environments
100+Unit Tests (planned)
10E2E Scenarios
5Load Test Phases
p95 < 3sResponse Threshold
22Sign-Off Checklist Items
Three QA Pillars
Functional
Every endpoint works correctly, auth is solid, user data is isolated per Warrior.
Manually verified — automated suite to build
Load & Scale
System stays operational at 5,000–10,000 concurrent Warriors with sub-3s p95 response times.
Architecture designed — staged scaling plan documented
Security
Malicious users cannot break, extract, or corrupt Warrior data across any attack surface.
Two critical gaps resolved — full audit documented
Test Environments
All QA work uses Staging only. No test ever runs against the Production Firebase project.
| Environment | Firebase Project | Purpose | Access |
|---|---|---|---|
| Staging | attack-with-stack-staging | All QA, load testing, integration testing | Steffen, Weston, QA |
| Beta | TBD | Pre-production validation with invited Warriors | Weston to provision |
| Production | TBD | Live system for 3,000+ Warriors | Post-launch only |

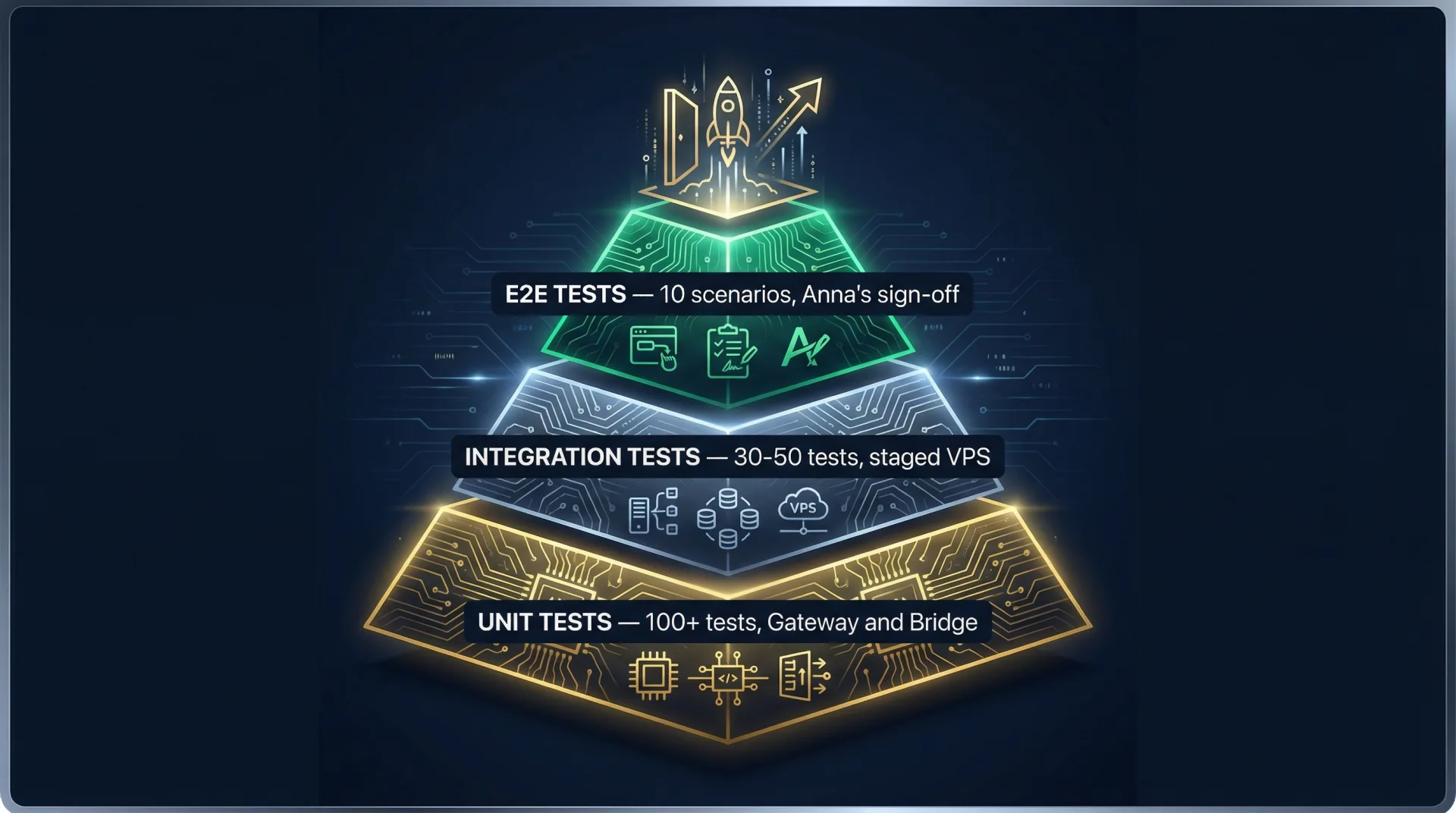

Testing Pyramid
E2E Tests5–10 scenariosFull conversation: Flutter → Gateway → Dify → Bridge → Firebase
Integration Tests30–50 testsGateway ↔ Dify, Dify ↔ Bridge, Bridge ↔ Firestore
Unit Tests100+ testsAuth middleware, Zod schemas, route handlers
Unit Tests — Gateway
| File | Test | Expected |
|---|---|---|
firebase-auth.test.ts | Valid Firebase ID token | 200 — userId in context |
| Missing Authorization header | 401 — Unauthorized | |
| Malformed bearer token | 401 — Unauthorized | |
| Expired token | 401 — Unauthorized | |
| Token for User A used by User B | 401 — invalid signature | |
rate-limit.test.ts | 20 requests in 60s | All 200 |
| 21st request in window | 429 with Retry-After header | |
| Two users, each at 20 req | Both 200 — per-user limits | |
| /health — any request count | Always 200 — not rate limited | |
chat.test.ts | Valid auth + message → Dify mock | 200 SSE stream |
| Missing/empty message field | 400 — Bad Request | |
| Dify returns 5xx | 502 — Upstream Error |
Unit Tests — Firebase Bridge
| Test | Expected |
|---|---|
| Stack content at 5,000 chars | Passes validation |
| Stack content at 5,001 chars | Rejected — content too long |
| Stack type not in allowed enum | Rejected — invalid enum |
| Missing required fields | Rejected — missing field error |
digital_trainer_stack flag on create | Always set to true |
| GET /stacks/:userId — known user | 200 with array |
| POST /stacks/:userId — valid payload | 201 — digital_trainer_stack: true |
| PATCH /stacks/:userId/:stackId — non-existent | 404 |
| GET /context/:userId — cold Redis | Response < 300ms |
| GET /context/:userId — warm Redis | Response < 10ms |
| PUT /core4/:userId/:date — 6 of 8 toggles true | score = 75.0 |
Anna's 10 E2E Test Scenarios
These are the scenarios that represent a passing QA sign-off. Each requires a real staging session.
| # | Scenario | Pass Signal |
|---|---|---|
| E2E-01 | Power Stack conversation (happy path) | SSE streams within 3s; agent correctly identified; prior stacks referenced |
| E2E-02 | Coordinator routing accuracy | ≥ 8/10 messages routed to correct specialist (80% threshold) |
| E2E-03 | Firebase personalization | Agent's response references user's prior stack content |
| E2E-04 | Stack write and verification | New stack in staging Firestore with digital_trainer_stack: true |
| E2E-05 | Auth rejection | 401 within 200ms; no Dify call made |
| E2E-06 | User data isolation | User A and User B see only their own data — zero cross-contamination |
| E2E-07 | Rate limit enforcement | 21st request returns 429 with Retry-After |
| E2E-08 | Core4 score calculation | PUT Core4 with 6/8 true → score = 75.0 in Firestore |
| E2E-09 | Bridge write rate limit | 11th write/minute returns 429 from Bridge |
| E2E-10 | Full voice conversation | Audio plays within 5s; no transcription gaps |
Load Testing Plan
Tool: k6. SSE-native, TypeScript-friendly, clean dashboards, CI-ready.
Phase Schedule
| Phase | Users | Duration | Goal | Trigger |
|---|---|---|---|---|
| Baseline | 0 → 100 | 1 hour | Find current ceiling | Now (before Garrett demo) |
| Confidence | 0 → 200 | 2 hours | Confirm 200-user stability | After baseline passes |
| Stress | 0 → 500 | 4 hours | Find the failure mode | Pre-beta launch |
| Scale | 0 → 2,000 | 8 hours | Validate Step 1 upgrade | After VPS upgrade |
| Production Sim | 0 → 5,000 | 24 hours | Validate Stage 2 architecture | Pre-production launch |
Metrics Thresholds
| Metric | Green | Yellow | Red |
|---|---|---|---|
| p95 response time | < 3s | 3–8s | > 8s |
| Error rate | < 0.5% | 0.5–2% | > 2% |
| VPS RAM | < 9GB | 9–11GB | > 11GB |
| VPS CPU | < 70% | 70–85% | > 85% |
| Dify worker queue depth | < 10 | 10–50 | > 50 |
| Redis cache hit rate | > 80% | 60–80% | < 60% |
Anna's Gate — Full Sign-Off Checklist
All items require evidence, not just "looks good". All F-01–F-09 must be GREEN before the Garrett demo. All S-01–S-20 before production launch.
7.1 Functional Readiness
F-01Unit test suite exists for warrior-hono-gateway — all passing
F-02Unit test suite exists for warrior-firebase-bridge — all passing
F-03E2E-01: Happy path Power Stack conversation completes successfully
F-04E2E-02: Coordinator routes ≥ 8/10 test messages to correct specialist
F-05E2E-03: Agent references user's prior stacks in response
F-06E2E-04: AI-created stack appears in Firebase with
digital_trainer_stack: trueF-07E2E-05: Expired token returns
401 within 200msF-08E2E-06: User A cannot see User B's stack data
F-09E2E-09: Bridge write rate limit (
429 on 11th write/minute) confirmed7.2 Load Readiness
L-01Baseline load test completed — results documented with p50/p95/p99
L-02150 concurrent users: p95 response < 3s, error rate < 1%
L-03VPS RAM < 10GB under 150-user sustained load
L-04Redis cache hit rate > 80% under load
L-05Celery worker queue depth < 50 under load
L-06Scaling upgrade path documented and costed
7.3 Security Readiness — Minimum Pre-Launch
Full security analysis in Security Documentation. Items below are the minimum gate. S-01–S-20 all required before production launch.
S-01ALLOWED_ORIGIN set in staging .env (WARAI-71 — merged)
S-02Rate limiting confirmed: 21st request returns 429 (WARAI-72 — merged)
S-03Direct HTTP to Bridge port 4000 from outside VPS: connection refused
S-04Firebase service account credentials absent from all logs
S-05Dify API key absent from any client-visible response
S-06Input length limit on /chat message field implemented
S-07Bridge write rate limit (ADR-W021 Redis pattern) implemented
S-08warrior-hono-gateway binds to 127.0.0.1:3000 + nginx reverse proxy (WARAI-69)
S-09Qdrant API key set, enforced, .env permissions verified at 600
S-10dify-sandbox on bridge mode; cannot reach dify-db or dify-redis
S-11SSRF proxy blocklist covers Docker bridge gateway IP range
S-12SSH port 22 restricted to Twingate egress IPs — not open to 0.0.0.0/0
S-13Firebase .env permissions at 600; git history scanned clean
S-14Gateway calls verifyIdToken with checkRevoked: true
S-15Bridge write path uses HMAC-signed user token — not bare Dify user_id (ADR-W026)
S-16Firestore Security Rules: request.auth.uid == userId enforced
S-17Injection pattern blocklist active at Gateway before Dify handoff
S-18Identity anchor + security boundary in all 7 agent system prompts
S-19Pre-write Code Node validation gate in Dify (user_id from system variable only)
S-20Bridge Docker container isolated from dify-sandbox and Dify LLM containers (ADR-W027)
7.4 CI/CD Readiness
CI-01GitHub Actions workflow runs unit tests on every push to dev
CI-02bun run typecheck passes in CI for both gateway and bridge repos
CI-03Load test baseline runs as scheduled nightly job or on release-candidate tags — not on every push to main
Open Items
| Item | Owner | Priority | Blocks |
|---|---|---|---|
| Set ALLOWED_ORIGIN in staging .env | Steffen / Weston | HIGH | S-01 |
| Implement Bridge write rate limit (ADR-W021 Redis) | Jeremy | HIGH | S-07 |
| Add input length limit on Gateway /chat message | Jeremy | MEDIUM | S-06 |
| Build unit test suite for both repos | Jeremy | HIGH | F-01, F-02 |
| Set up GitHub Actions CI pipeline | Jeremy | MEDIUM | CI-01 |
| Provision Beta Firebase project | Weston | MEDIUM | Beta launch |
| Full security audit — prompt injection, Dify sandboxing | Separate session | HIGH | Production |
